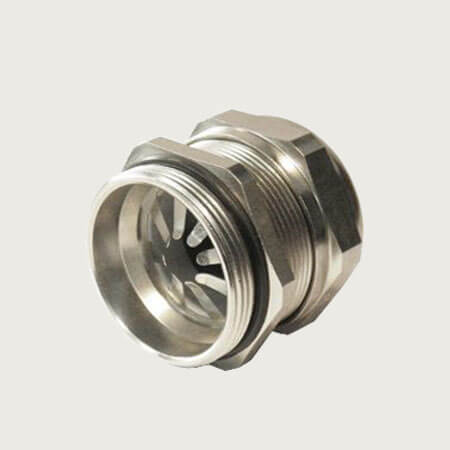

EMC Cable Gland
- PRODUCT DETAIL
■ Product introduction:
1. Material: brass with nickel, pa66, rubber
2. Thread: metric, PG, G(PF), NPT
3. Working Temperature: -40℃~+100℃
4. Feature: EMC cable gland can hold cable firmly and have a wider cable range. And also resistant to salt water, weak acid, alcohol, oil, grease and common solvency. Furthermore, emc cable gland can transfer the effect of EMI.

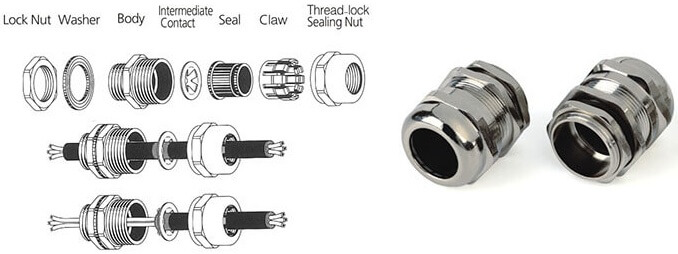

■ Product Structure:
EMC Cable Gland Structure
■ Product Size:
|
Thread
|
Product Types
|
Cable Range
|
Thread Length
|
Package
|
|
M12*1.5
|
EMC-MBA12-05
|
5.3-3
|
8
|
10
|
|
EMC-MBA12-08
|
8-4.5
|
8
|
10
|
|
|
M16*1.5
|
EMC-MBA16-06
|
7-4
|
9
|
10
|
|
EMC-MBA16-10
|
10-6
|
9
|
10
|
|
|
M20*1.5
|
EMC-MBA20M-08
|
8.8-5
|
9.5
|
10
|
|
EMC-MBA20M-11
|
12-7
|
9.5
|
10
|
|
|
EMC-MBA20-10
|
11-6
|
9.5
|
10
|
|
|
EMC-MBA20-13
|
14-9
|
9.5
|
10
|
|
|
M25*1.5
|
EMC-MBA25-16
|
16-10
|
12
|
10
|
|
EMC-MBA25-18
|
18-13
|
12
|
10
|
|
|
M32*1.5
|
EMC-MBA32-22
|
22-15
|
12.5
|
10
|
|
EMC-MBA32-25
|
25-18
|
12.5
|
10
|
|
|
M40*1.5
|
EMC-MBA40-25
|
25-20
|
15
|
5
|
|
EMC-MBA40-30
|
30-24
|
15
|
5
|
|
|
M50*1.5
|
EMC-MBA50-32
|
32-26
|
15
|
2
|
|
EMC-MBA50-39
|
40-30
|
15
|
2
|
|
|
M63*1.5
|
EMC-MBA63-46
|
46-38
|
15
|
2
|
|
EMC-MBA63-49
|
50-40
|
15
|
2
|
|
|
PG7
|
EMC-PBA7-05
|
5.3-3
|
8
|
10
|
|
EMC-PBA7-08
|
8-4.5
|
8
|
10
|
|
|
PG9
|
EMC-PBA9-05
|
5.3-3
|
8
|
10
|
|
EMC-PBA9-08
|
8-4.5
|
8
|
10
|
|
|
PG11
|
EMC-PBA11-06
|
7-4
|
9
|
10
|
|
EMC-PBA11-10
|
10-6
|
9
|
10
|
|
|
PG13.5
|
EMC-PBA13.5-08
|
8.8-5
|
9.5
|
10
|
|
EMC-PBA13.5-11
|
12-7
|
9.5
|
10
|
|
|
PG16
|
EMC-PBA16-10
|
11-6
|
9.5
|
10
|
|
EMC-PBA16-13
|
14-9
|
9.5
|
10
|
|
|
PG21
|
EMC-PBA21-16
|
16-10
|
12
|
10
|
|
EMC-PBA21-18
|
18-13
|
12
|
10
|
|
|
PG29
|
EMC-PBA29-22
|
22-15
|
12.5
|
10
|
|
EMC-PBA29-25
|
25-18
|
12.5
|
10
|
|
|
PG36
|
EMC-PBA36-25
|
25-20
|
15
|
5
|
|
EMC-PBA36-30
|
30-24
|
15
|
5
|
|
|
G(PF)1/4″
|
EMC-FBA13-05
|
5.3-3
|
8
|
10
|
|
EMC-FBA13-08
|
8-4.5
|
8
|
10
|
|
|
G(PF)3/8″
|
EMC-FBA17-06
|
7-4
|
9
|
10
|
|
EMC-FBA17-10
|
10-6
|
9
|
10
|
|
|
G(PF)1/2″
|
EMC-FBA21-10
|
11-6
|
9.5
|
10
|
|
EMC-FBA21-13
|
14-9
|
9.5
|
10
|
|
|
G(PF)3/4″
|
EMC-FBA26-16
|
16-10
|
12
|
10
|
|
EMC-FBA26-18
|
18-13
|
12
|
10
|
|
|
G(PF)1″
|
EMC-FBA33-22
|
22-15
|
12.5
|
10
|
|
EMC-FBA33-25
|
25-18
|
12.5
|
10
|
|
|
G(PF)1-1/4″
|
EMC-FBA42-25
|
25-20
|
15
|
5
|
|
EMC-FBA42-30
|
30-24
|
15
|
5
|
|
|
G(PF)1-1/2″
|
EMC-FBA48-32
|
32-26
|
15
|
2
|
|
EMC-FBA48-39
|
40-30
|
15
|
2
|
|
|
G(PF)2″
|
EMC-FBA60-46
|
46-38
|
15
|
2
|
|
EMC-FBA60-49
|
50-40
|
15
|
2
|
|
|
NPT3/8″
|
EMC-NBA17-06
|
7-4
|
13
|
10
|
|
EMC-NBA17-10
|
10-6
|
13
|
10
|
|
|
NPT1/2″
|
EMC-NBA21-10
|
11-6
|
13
|
10
|
|
EMC-NBA21-13
|
14-9
|
13
|
10
|
|
|
NPT3/4″
|
EMC-NBA26-16
|
16-10
|
14
|
10
|
|
EMC-NBA26-18
|
18-13
|
14
|
10
|
|
|
NPT1″
|
EMC-NBA33-22
|
22-15
|
15
|
10
|
|
EMC-NBA33-25
|
25-18
|
15
|
10
|
|
|
NPT1-1/4″
|
EMC-NBA42-25
|
25-20
|
15
|
5
|
|
EMC-NBA42-30
|
30-24
|
15
|
5
|
■ Payment Detail:
MOQ: 100pcs
Payments: T/T, Western Union, Paypal are available.
General Payment: 30% deposit paid in advance, T/T balance before delivery.
