Product name :  JIS Standard Marine Cable Gland
Material :
 Enlarge Image                   Back



Details:

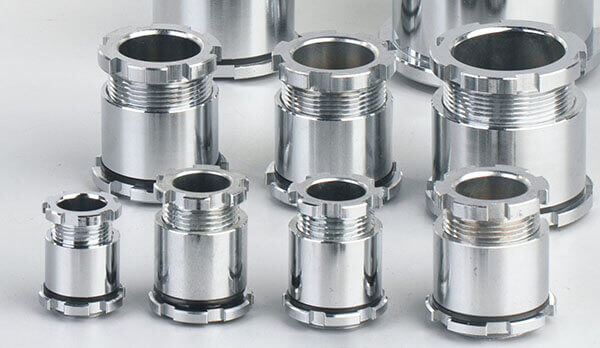

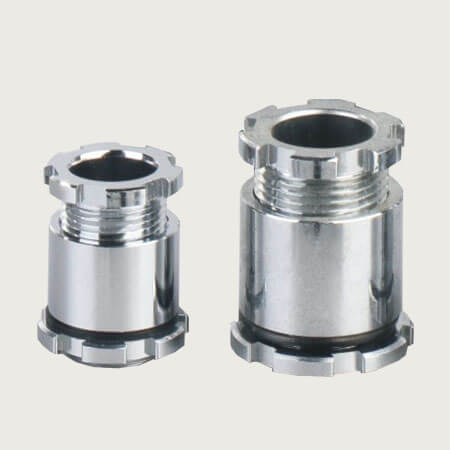

JIS Standard Marine Cable Gland



jis standard marine cable gland
jis standard marine cable gland

■ Product introduction:

1. Material: chromium plated brass

2. Thread: PF thread

3. Gland Type: JIS standard

4. Certificates: CE, REACH

5. Feature: JIS standard marine cable gland is widely used in marine, transportation, electronics industry etc  to fix cables.

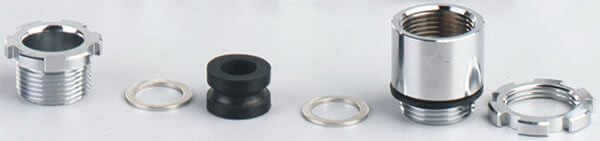

■ Product Structure:

jis standard marine cable gland structure
jis standard marine cable gland structure

■ Product Size:

Item
Thread
Specification
Packing Type
Cable Range
Thread Length
Mounting Hole Diameter
JIS-10
3/8″
FLEX-JIS10A
A
6-7
11
16.6
FLEX-JIS10B
B
7-8
JIS-15
1/2″
FLEX-JIS15A
A
8-9
11
20.9
FLEX-JIS15B
B
9-10
FLEX-JIS15C
C
9-11
JIS-20
3/4″
FLEX-JIS20A
A
11-12
11
26.4
FLEX-JIS20B
B
12-13
FLEX-JIS20C
C
12-15
JIS-25
1″
FLEX-JIS25A
A
15-16
11
33.2
FLEX-JIS25B
B
16-18
FLEX-JIS25C
C
16-20
JIS-30
1-1/4″
FLEX-JIS30A
A
20-22
12
41.9
FLEX-JIS30B
B
22-24
FLEX-JIS30C
C
22-26
JIS-35
1-1/2″
FLEX-JIS35A
A
26-28
12
47.8
FLEX-JIS35B
B
28-30
FLEX-JIS35C
C
26-30
JIS-40
FLEX-JIS40A
A
30-32
FLEX-JIS40B
B
32-34
FLEX-JIS40C
C
30-34
JIS-45
2″
FLEX-JIS45A
A
34-36
12
59.6
FLEX-JIS45B
B
36-38
FLEX-JIS45C
C
36-40
JIS-50
FLEX-JIS50A
A
40-42
FLEX-JIS50B
B
42-44
FLEX-JIS50C
C
40-44
JIS-55
2-1/2″
FLEX-JIS55A
A
44-46
12
75.1
FLEX-JIS55B
B
46-48
FLEX-JIS55C
C
46-50
JIS-60
FLEX-JIS60A
A
50-52
FLEX-JIS60B
B
52-54
FLEX-JIS60C
C
52-56
JIS-65
3″
FLEX-JIS65A
A
56-58
14
87.8
FLEX-JIS65B
B
58-60
JIS-70
FLEX-JIS70A
A
60-62
FLEX-JIS70B
B
62-64
JIS-75
FLEX-JIS75A
A
64-66
FLEX-JIS75B
B
66-70

■ Payment Detail:

MOQ: 10pcs

Payments: T/T, Western Union, Paypal are available.

General Payment: 30% deposit paid in advance, balance before delivery.
