Home>Products>Marine Cable Gland>TJ Clamping Type Marine Cable Gland
Product name :  TJ Clamping Type Marine Cable Gland
Material :
 Enlarge Image                   Back
             [Next Product]→


Details:

TJ Clamping Type Marine Cable Gland

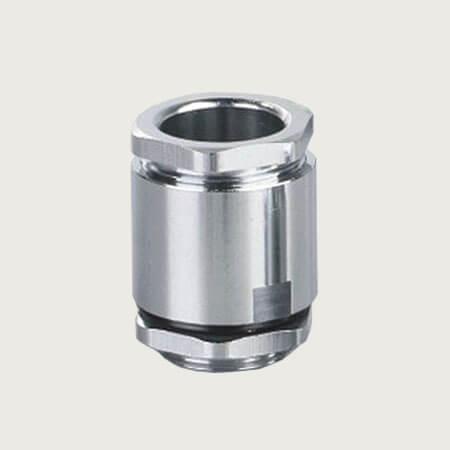

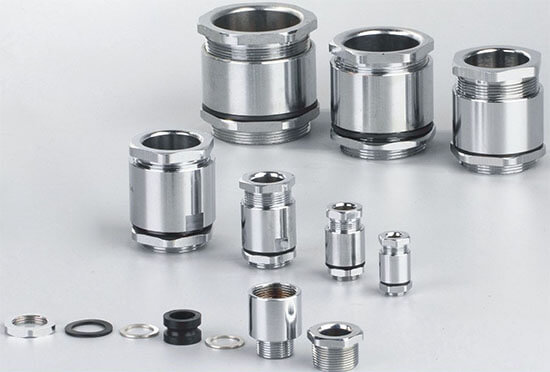

TJ clamping type marine cable gland show
TJ clamping type marine cable gland show

■ Product introduction:

1. Material: chromium plated brass

2. Thread: Metric thread

3. Gland Type: TJ clamping type

4. Certificates: CE, REACH

5. Feature: TJ clamping type marine cable gland is widely used in ships, marine, transportation, electronics industry etc  to fix cables.

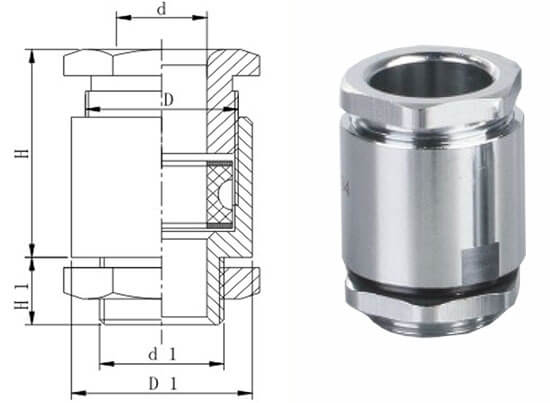

■ Product Structure:

TJ clamping type marine cable gland structure
TJ clamping type marine cable gland structure



■ Product Size:

Item
Cable Range
Thread D
Thread d1
Body Outer Diameter D1
Joint Length H
Thread Length H1
FLEX-TJ-8
5-7
M16*1
M14*1
20
32
9
FLEX-TJ-13
6-12
M20*1
M18*1
24
35
10
FLEX-TJ-16
11-15
M27*1.5
M22*1.5
31.5
40
12
FLEX-TJ-19
14-18
M30*1.5
M27*1.5
34.5
42
12
FLEX-TJ-24
17-23
M35*1.5
M30*1.5
39.6
44
12
FLEX-TJ-28
22-27
M42*2
M36*1.5
46.5
46
15
FLEX-TJ-34
26-33
M47*2
M42*2
54
49
15
FLEX-TJ-42
32-41
M55*2
M52*2
62
54
15
FLEX-TJ-50
40-49
M62*5
M58*2
68.5
56
15
FLEX-TJ-58
48-57
M71*2
M68*2
77.5
56
20



■ Payment Detail:

MOQ: 50pcs

Payments: T/T, Western Union, Paypal are available.

Payment Terms: 30% deposit, balance payment before shipment.
