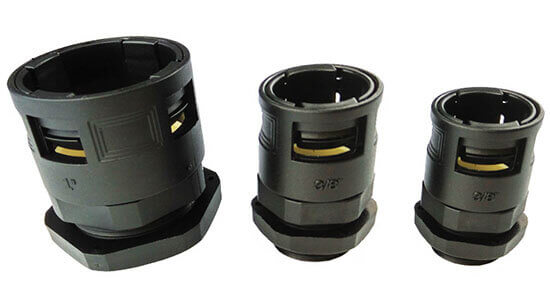

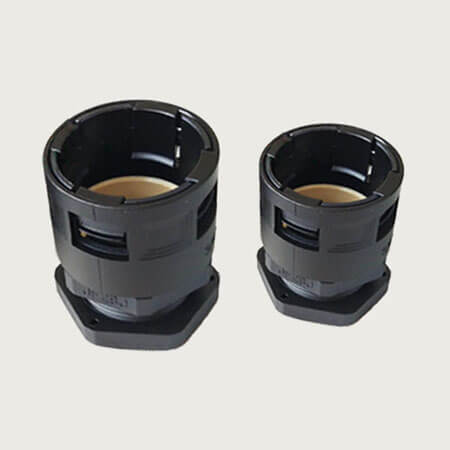

Advanced Straight Connector

Products Technical Date: 1. Material: Polyamide(pa) 2. Working Temperature: -20℃~ +110℃ 3. Threads: PG and Metric 4. Properties: Self-extinguishing, IP66. 5. Usage: to fix and connect plastic flexible conduit or wire loom tubing. 6. Packaging: Exported cartons with PE bags. Packing quantity based on the specification. 7. Size: Conduit Outer Diameter PG Type Metric Type Part No. PG Thread Par ...
  • PRODUCT DETAIL

Products Technical Date:

1. Material: Polyamide(pa)

2. Working Temperature: -20℃~ +110℃

3. Threads: PG and Metric

4. Properties: Self-extinguishing, IP66.

5. Usage: to fix and connect plastic flexible conduit or wire loom tubing.

6. Packaging: Exported cartons with PE bags. Packing quantity based on the specification.

7. Size:

Conduit Outer Diameter PG Type Metric Type
Part No. PG Thread Part No. M Thread
10mm Flex-10Z PG7 Flex-10ZM M10*1.5
13mm Flex-13Z PG9 Flex-13ZM M12*1.5
15.8mm Flex-15Z PG11 Flex-15ZM M16*1.5
18.5mm Flex-18Z PG13.5 Flex-18ZM M20*1.5
21.2mm Flex-21Z PG16 Flex-21ZM M20*1.5
25mm Flex-25Z PG21 Flex-25ZM M25*1.5
28.5mm Flex-28Z PG21 Flex-28ZM M25*1.5
32.0mm Flex-32Z PG29 Flex-32ZM M32*1.5
34.5mm Flex-34Z PG29 Flex-34ZM M32*1.5
42.5mm Flex-42Z PG36 Flex-42ZM M40*1.5
54.5mm Flex-54Z PG48 Flex-54ZM M50*1.5
Fire-proof: V0, V1, V2, HB. Only for customizable.



Remarks:

MOQ: 100pcs.

Payments: T/T, Western Union, Paypal are available. Others are negotiated.

Customizable Service: advanced straight connector customizable is workable for us. Such as sizes, logo, packing quantity, packages etc.
