Product name :  Rubber End Caps
Material : Rubber(TPR)
 Enlarge Image                   Back



Details:

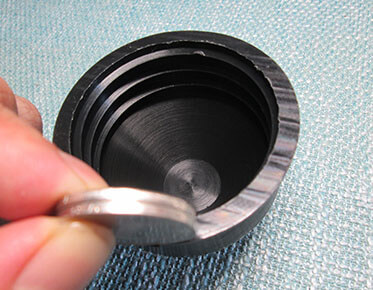

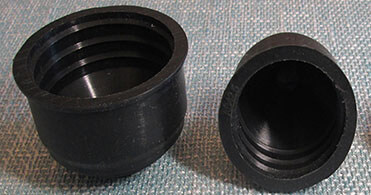

Silicone Rubber End Caps for Conduit

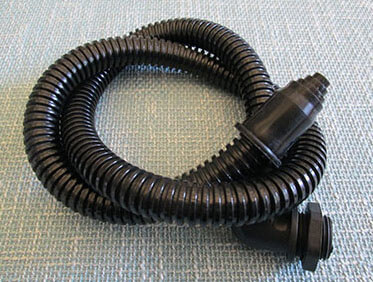

silicone rubber end caps protect conduit
silicone rubber end caps protect conduit

■ Products Technical Date:

1. Material:

silicone rubber

2. Working Temperature:

-40℃~ +115℃

3. Color:

black and grey are in stock, others for custom service.

4. Packaging:

PE film bags, with carton.

5. Usage:

protect flexible plastic conduit end from others.



■ Structure Sizes:

Silicone Rubber End Caps Structure
silicone rubber end caps structure show 01

Silicone Rubber End Caps Structure
silicone rubber end caps structure show 02

Specification
Matched Conduit OD/mm
Matched Conduit OD/inch
Cable Range/mm
Length/mm
FLEX-RMG-10.0
10.0 1/4″ 1.0-8.0 29.0
FLEX-RMG-13.0 13.0 5/16″ 1.0-10.0 32.5
FLEX-RMG-15.8 15.8 3/8″ 4.0-12.0 36.5
FLEX-RMG-18.5 18.5 4.0-13.0 37.5
FLEX-RMG-21.2 21.2 1/2″ 6.0-16.5 37.5
FLEX-RMG-25.0 25.0 6.0-21.0 37.5
FLEX-RMG-28.5 28.5 3/4″ 6.0-23.0 40.2
FLEX-RMG-34.5 34.5 1″ 6.0-29.0 44.2
FLEX-RMG-42.5 42.5 1-1/4″ 10.0-37.0 46.0
FLEX-RMG-54.5 54.5 2″ 10.0-47.0 52.0



Remarks:

MOQ: 100pcs.

Payments: T/T, Western Union, Paypal are available. Others are negotiated.

Custom Service: rubber end caps custom service is workable for us. Such as sizes, logo, packing quantity, packages etc.


  • Flex Conduit, Corrugated Conduit
