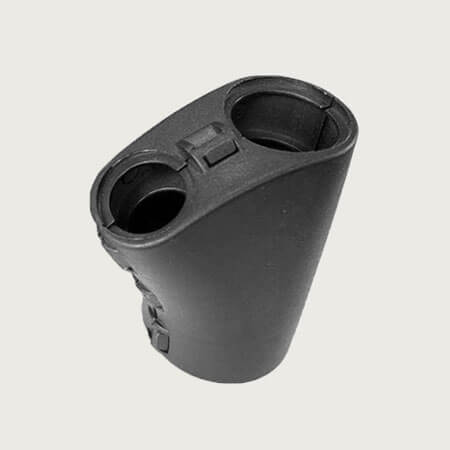

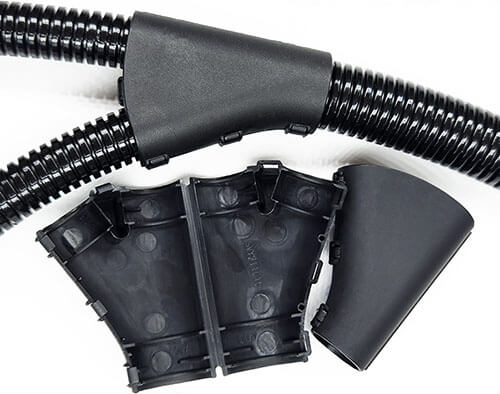

Openable Wire Loom Y Fittings
- PRODUCT DETAIL
Products:
Show:
Size Chart:
|
Specification
|

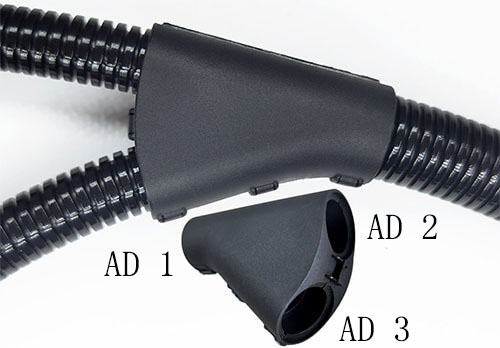

AD1(conduit O.D.)
|
AD2(conduit O.D.)
|
AD3(conduit O.D.)
|
|
WLYF-10/7/7
|
10mm(1/4″) | 7mm(1/8″) | 7mm(1/8″) |
| WLYF-10/10/10 | 10mm(1/4″) | 10mm(1/4″) | 10mm(1/4″) |
| WLYF-13/10/10 | 13mm(3/8″) | 10mm(1/4″) | 10mm(1/4″) |
| WLYF-13/13/13 | 13mm(3/8″) | 13mm(3/8″) | 13mm(3/8″) |
| WLYF-16/10/10 | 16mm(1/2″) | 10mm(1/4″) | 10mm(1/4″) |
| WLYF-16/13/13 | 16mm(1/2″) | 13mm(3/8″) | 13mm(3/8″) |
| WLYF-16/16/13 | 16mm(1/2″) | 16mm(1/2″) | 13mm(3/8″) |
| WLYF-16/16/16 | 16mm(1/2″) | 16mm(1/2″) | 16mm(1/2″) |
| WLYF-18/18/10 | 18 | 18 | 10mm(1/4″) |
| WLYF-21/13/13 | 21mm(5/8″) | 13mm(3/8″) | 13mm(3/8″) |
| WLYF-21/16/13 | 21mm(5/8″) | 16mm(1/2″) | 13mm(3/8″) |
| WLYF-21/16/16 | 21mm(5/8″) | 16mm(1/2″) | 16mm(1/2″) |
| WLYF-21/18/10 | 21mm(5/8″) | 18 | 10mm(1/4″) |
| WLYF-21/21/13 | 21mm(5/8″) | 21mm(5/8″) | 13mm(3/8″) |
| WLYF-21/21/16 | 21mm(5/8″) | 21mm(5/8″) | 16mm(1/2″) |
| WLYF-21/21/21 | 21mm(5/8″) | 21mm(5/8″) | 21mm(5/8″) |
| WLYF-25/21/13 | 25mm(3/4″) | 21mm(5/8″) | 13mm(3/8″) |
| WLYF-25/21/16 | 25mm(3/4″) | 21mm(5/8″) | 16mm(1/2″) |
| WLYF-25/25/25 | 25mm(3/4″) | 25mm(3/4″) | 25mm(3/4″) |
| WLYF-28/21/13 | 28mm(7/8″) | 21mm(5/8″) | 13mm(3/8″) |
| WLYF-28/21/16 | 28mm(7/8″) | 21mm(5/8″) | 16mm(1/2″) |
| WLYF-28/28/13 | 28mm(7/8″) | 28mm(7/8″) | 13mm(3/8″) |
| WLYF-28/28/16 | 28mm(7/8″) | 28mm(7/8″) | 16mm(1/2″) |
| WLYF-28/28/21 | 28mm(7/8″) | 28mm(7/8″) | 21mm(5/8″) |
| WLYF-34/28/28 | 34mm(1″) | 28mm(7/8″) | 28mm(7/8″) |
Remarks:
MOQ:
100pcs.
Payments:
T/T, Western Union, Paypal are available. Others are negotiated.
Custom Service:
Openable wire loom Y fittings custom service is workable for us. Such as sizes, logo, packing quantity, packages etc.
