Product name :  Plastic Cable Gland
Material : Polyamide(Nylon)
 Enlarge Image                   Back



Details:

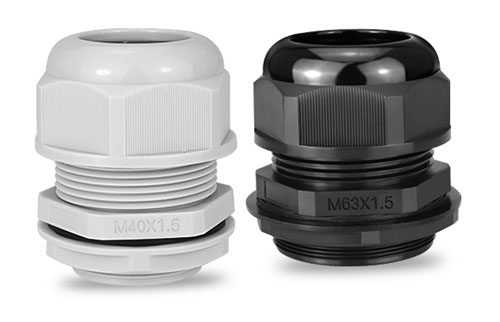

Plastic Nylon Cable Gland

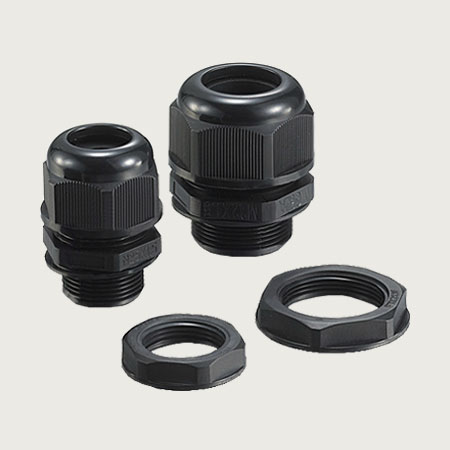

plastic nylon cable gland show

■ Product introduction:

1. Material:

PA66(durable nylon), rubber

2. Thread:

Metric, PG, NPT, PF

3. Protection Level:

IP68 waterproof

4. Color:

Black and grey colors are in stock.

5. Working Temperature:

-40℃~+120℃

6. Feature:

Plastic nylon cable glands can hold cable firmly and have a wider cable range. They are widely used in wire and cable managements. And it can also resistant to salt water, weak acid, alcohol, oil, grease and common solvency.



■ Product Structure:

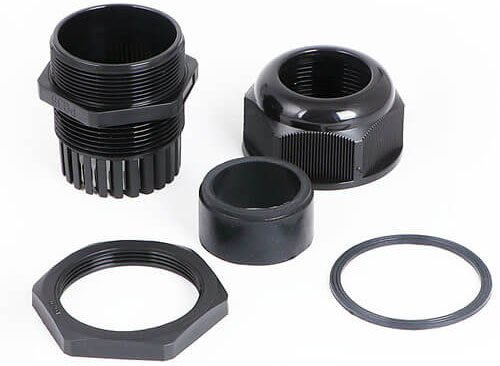

plastic nylon cable gland structure
plastic nylon cable gland structure



■ Product Size:

Metric Thread

Thread
Product Type
Cable Range
Thread Length
Package
M8*1.5
FG-M8-4.8
2-4.8
7.5
50
M10*1.5
FG-M10-6
3-6
8
50
M12*1.5
FG-M12S-6
3-6.5
8.5
50
FG-M12-7
4-8
8.5
50
M16*1.5
FG-M16S-8
4-8
10
50
FG-M16-10
5-10
10
50
M18*1.5
FG-M18-10
5-10
10
50
M20*1.5
FG-M20M-10
5-10
10
50
FG-M20S-12.5
6-12.5
10
50
FG-M20-13.5
8.5-14
11
50
M22*1.5
FG-M22-13.5
8.5-14
11
50
M25*1.5
FG-M25S-14
8.5-14
11.6
50
FG-M25-18
12.5-18
11.6
50
M32*1.5
FG-M32-25
17-25
15
20
M36*1.5
FG-M36-25
17-25
12
20
M40*1.5
FG-M40-31
23-32
15
10
M50*1.5
FG-M50-41
30-41
15
10
M63*1.5
FG-M63-45
35-45
18
10

PG Thread

Thread
Product Type
Cable Range
Thread Length
Package
PG7
FG-PG7S-6
3-6.5
8
50
FG-PG7-7
4-8
8
50
PG9
FG-PG9-7.5
4-8
8.2
50
PG11
FG-PG11-10
5-10
10
50
PG13.5
FG-PG13.5-12.5
6-12.5
10
50
PG16
FG-PG16-14
8.5-14
10.5
50
PG19
FG-PG19-14
8.5-14
11
50
PG21
FG-PG21-17.5
12.5-18
12
50
PG25
FG-PG25-20
14-20
13
50
PG29
FG-PG29-25
17-25
12
20
PG36
FG-PG36-31
24-32
15
10
PG42
FG-PG42-41
30-41
15
10
PG48
FG-PG48-45
35-45
18.2
10

G(PF) Thread

Thread
Product Type
Cable Range
Thread Length
Package
1/4″
FG-G1/4-5
3-5.3
8.5
50
FG-G1/4-8
4-8
8.5
50
3/8″
FG-G3/8-7
3-7
10
50
FG-G3/8-10
5-10
10
50
1/2″
FG-G1/2-9
5-9
10
50
FG-G1/2-12.5
6-12.5
10
50
3/4″
FG-G3/4-13
7-13
12
50
FG-G3/4-17.5
12.5-18
12
50
1″
FG-G1-17.5
13-17.5
15
20
FG-G1-25
17-25
15
20
1-1/4″
FG-G1-1/4-25.5
17-25.5
15
10
FG-G1-1/4-31
24-32
15
10
1-1/2″
FG-G1-1/2-32
25-32
16
10
FG-G1-1/2-41
30-41
16
10

NPT Thread

Thread
Product Type
Cable Range
Thread Length
Package
3/8″
FG-NPT3/8-7
3-7
10
50
FG-NPT3/8-10
5-10
10
50
1/2″
FG-NPT1/2-9
5-9
10
50
FG-NPT1/2-13
6-12.5
10
50
3/4″
FG-NPT3/4-13
7-13
15
50
FG-NPT3/4-18
12.5-18
15
50
1″
FG-NPT1-17.5
13-17.5
17
20
FG-NPT1-25
17-25
17
20
1-1/4″
FG-NPT1-1/4-25.5
17-25.5
17
20
FG-NPT1-1/4-31
24-32
17
20



■ Payment Detail:

MOQ: 100pcs

Payments: T/T, Western Union, Paypal are available.

General Payment: 30% deposit paid in advance, T/T balance before delivery.
