Water-proof Connector
- PRODUCT DETAIL

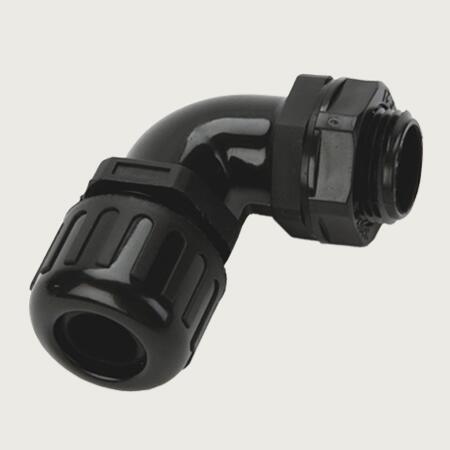

Seal Tight Connectors
Products Technical Date:
1. Material: Polyamide(pa)
2. Protection Levels: IP68(water-proof)
3. Working Temperature: -20℃~ +100℃
4. Threads: PG, Metric, G(PF)
5. Packaging: PE bags, with carton. Packing quantity based on the specification.

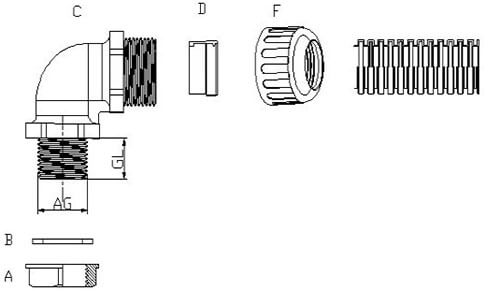

6. Structure:
7. Size:
| Conduit Outer Diameter | Metric | PG | G(PF) | |||
| Types | Thread | Types | Thread | Types | Thread | |
| 10.0mm | WJM1012 | M12*1.5 | WJP1007 | PG7 | WJG10-1/4 | 1/4 |
| 10.0mm | WJM1016 | M16*1.5 | WJP1009 | PG9 | ||
| 13.0mm | WJM1316 | M16*1.5 | WJP1309 | PG9 | WJG13-3/8 | 3/8 |
| 13.0mm | WJP1311 | PG11 | ||||
| 15.8mm | WJM1616 | M16*1.5 | WJP1611 | PG11 | WJG16-1/2 | 1/2 |
| 15.8mm | WJM1620 | M20*1.5 | WJP1613 | PG13.5 | ||
| 15.8mm | WJM1622 | M22*1.5 | WJP1616 | PG16 | ||
| 18.5mm | WJM1816 | M16*1.5 | WJP1811 | PG11 | WJG18-1/2 | 1/2 |
| 18.5mm | WJM1820 | M20*1.5 | WJP1813 | PG13.5 | ||
| 18.5mm | WJM1822 | M22*1.5 | WJP1813 | PG16 | ||
| 21.2mm | WJM2116 | M16*1.5 | WJP2116 | PG16 | WJG21-1/2 | 1/2 |
| 21.2mm | WJM2120 | M20*1.5 | WJP2121 | PG21 | WJG21-3/4 | 3/4 |
| 21.2mm | WJM2125 | M25*1.5 | ||||
| 25.0mm | WJM2525 | M25*1.5 | WJP2521 | PG21 | WJG25-3/4 | 3/4 |
| 26.2mm | WJM2625 | M25*1.5 | WJP2621 | PG21 | WJG26-3/4 | 3/4 |
| 28.5mm | WJM2825 | M25*1.5 | WJP2821 | PG21 | WJG28-3/4 | 3/4 |
| 34.5mm | WJM3232 | M32*1.5 | WJP3229 | PG29 | WJG32-1 | 1 |
| 42.5mm | WJM4240 | M40*1.5 | WJP4236 | PG36 | WJG42-1-1/4 | 1-1/4 |
| 42.5mm | WJM4250 | M50*1.5 | WJP4242 | PG42 | WJG42-1-1/2 | 1-1/2 |
| 48.0mm | WJM4850 | M50*1.5 | WJP4842 | PG42 | WJG48-1-1/2 | 1-1/2 |
| 54.5mm | WJM5450 | M50*1.5 | WJP5448 | PG48 | WJG54-2 | 2 |
| 54.5mm | WJM5463 | M63*1.5 | ||||
Remarks:
MOQ: 10pcs.
Payments: T/T, Western Union, Paypal are available. Others are negotiated.
Customizable Service: Seal tight connectors customizable is workable for us. Such as sizes, logo, packing quantity, packages etc.
