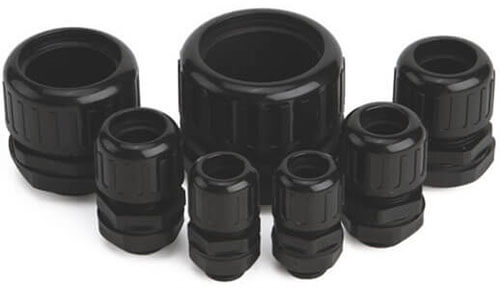

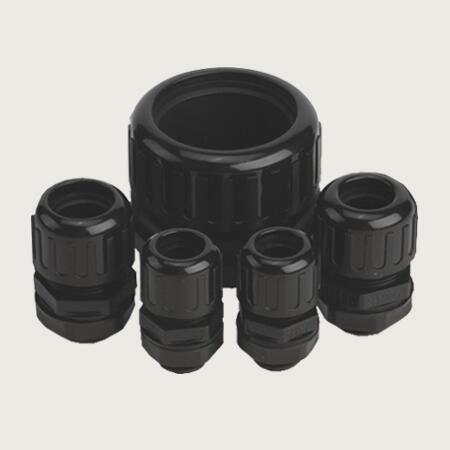

Waterproof Conduit Connectors

Products Technical Date:

1. Material: Polyamide(pa)

2. Protection Levels: IP68(water-proof)

3. Working Temperature: -20℃~ +100℃

4. Threads: PG, Metric, G(PF)

5. Packaging: PE bags, with carton. Packing quantity based on the specification.

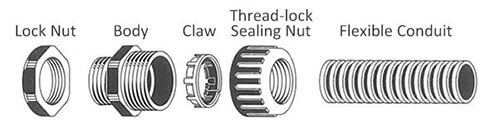

6. Structure:

Waterproof Conduit Connectors Structure

7. Size:

Conduit Outer Diameter Metric PG G(PF)
Types Thread Types Thread Types Thread
10.0mm WJM1012 M12*1.5 WJP1007 PG7 WJG10-1/4 1/4
10.0mm WJM1016 M16*1.5 WJP1009 PG9
13.0mm WJM1316 M16*1.5 WJP1309 PG9 WJG13-3/8 3/8
13.0mm WJP1311 PG11
15.8mm WJM1616 M16*1.5 WJP1611 PG11 WJG16-1/2 1/2
15.8mm WJM1620 M20*1.5 WJP1613 PG13.5
15.8mm WJM1622 M22*1.5 WJP1616 PG16
18.5mm WJM1816 M16*1.5 WJP1811 PG11 WJG18-1/2 1/2
18.5mm WJM1820 M20*1.5 WJP1813 PG13.5
18.5mm WJM1822 M22*1.5 WJP1813 PG16
21.2mm WJM2116 M16*1.5 WJP2116 PG16 WJG21-1/2 1/2
21.2mm WJM2120 M20*1.5 WJP2121 PG21 WJG21-3/4 3/4
21.2mm WJM2125 M25*1.5
25.0mm WJM2525 M25*1.5 WJP2521 PG21 WJG25-3/4 3/4
26.2mm WJM2625 M25*1.5 WJP2621 PG21 WJG26-3/4 3/4
28.5mm WJM2825 M25*1.5 WJP2821 PG21 WJG28-3/4 3/4
34.5mm WJM3232 M32*1.5 WJP3229 PG29 WJG32-1 1
42.5mm WJM4240 M40*1.5 WJP4236 PG36 WJG42-1-1/4 1-1/4
42.5mm WJM4250 M50*1.5 WJP4242 PG42 WJG42-1-1/2 1-1/2
48.0mm WJM4850 M50*1.5 WJP4842 PG42 WJG48-1-1/2 1-1/2
54.5mm WJM5450 M50*1.5 WJP5448 PG48 WJG54-2 2
54.5mm WJM5463 M63*1.5



Remarks:

MOQ: 10pcs.

Payments: T/T, Western Union, Paypal are available. Others are negotiated.

Customizable Service: waterproof conduit connectors customizable is workable for us. Such as sizes, logo, packing quantity, packages etc.
