Home>Products>Wire Loom>Split Wire Loom Tubing

Product name : Split Wire Loom Tubing

Material : PA or PP or PE

Enlarge Image

Back

←[Previous Product] [Next Product]→

Details:

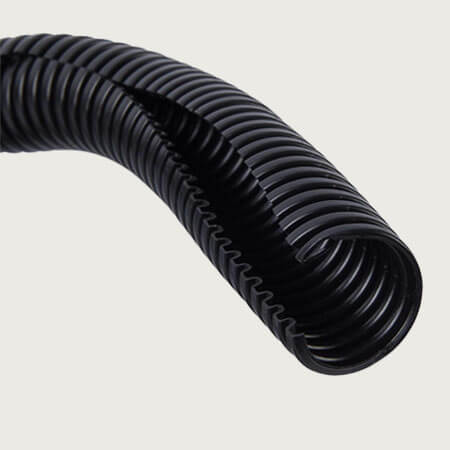

Split Loom Tubing

Products introduction:

1. Structure:

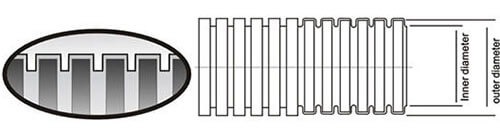

Split Loom Tubing Structure

2. Show:

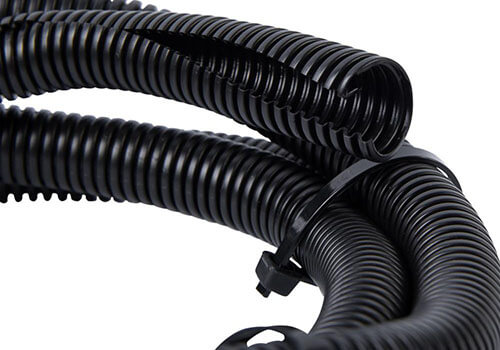

Split Loom Tubing Show

3. Material:

polypropylene(pp) is default material. All pp sizes’ tubing are in stock.

nylon/polyamide(pa) and polyethylene(pe) are also workable for us.

4. Working Temperature:

-30℃~+125℃

5. Usage:

split loom tubing outer surface is flexible and smooth, it is widely used in wire and cable protection, especially in auto wire harness.

6. Size:

Part No.	Inch Size	Inside Diameter(mm)	Outside Diameter(mm)	Length of Roll(m)
Flex-SPP-7		4.5	7.0	200
Flex-SPP-10	1/4″	6.5	10.0	100
Flex-SPP-11		8.5	11.5	100
Flex-SPP-13	5/16″	10.0	13.0	100
Flex-SPP-15	3/8″	12.0	15.8	100
Flex-SPP-18		14.3	18.5	100
Flex-SPP-20		16.0	20.0	100
Flex-SPP-21	1/2″	17.0	21.2	100
Flex-SPP-25		21.0	25.0	100
Flex-SPP-28	3/4″	23.0	28.5	100
Flex-SPP-34	1″	29.0	34.5	50
Flex-SPP-42	1-1/4″	36.0	42.5	25
Flex-SPP-54	2″	48.0	54.5	25
Flex-SPP-67	2-1/2″	56.3	67.2	25
Flex-SPP-80	3″	66.5	80.0	20
Flex-SPP-106	4″	91.0	106.0	20
Tolerance: ±0.1mm. Both split and non split are workable for us.

7. Package & Warehouse:
Split Loom Tubing Warehousee
general sizes split loom tubing are in stock

Remarks:

MOQ: 100m

General Terms: 30% deposit, balance payment before shipment.

Payments Method: T/T, Western Union, Paypal are available. Others are negotiated.

Custom Service: split loom tubing custom service is workable for us. Such as materials, sizes, logo, packing quantity, package, non-split, fire-proof etc.
