Product name :  Wire Loom Tubing
Material : PE
 Enlarge Image                   Back



Details:

Wire Loom Tubing



Products introduction:

1. Structure:

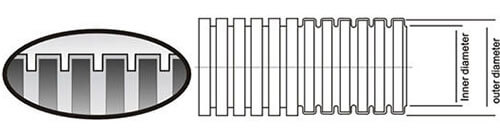

Wire Loom Tubing Structure

2. Show:

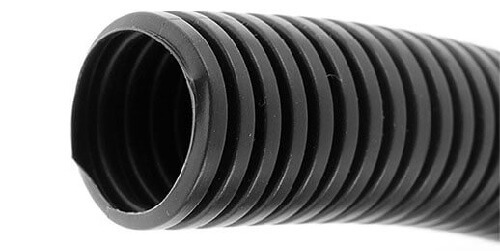

wire loom tubing show
wire loom tubing show

3. Material:

polypropylene(PE)

nylon(PA) and polyethylene(PP) are also workable for us.

4. Colors:

black(default color), others please contact our sales

5. Working Temperature:

-30℃~+120℃ (+130℃ in a short time)

5. Usage:

wire loom tubing is widely used to protect wire loom harness.

6. Size:

Part No.(Non-Split) Part No.(Split) Inch Inner Diameter(mm) Outer Diameter(mm) Package(m/roll)
Flex-PE-7 Flex-SPE-7 4.5 7.0 200
Flex-PE-10 Flex-SPE-10 1/4″ 6.5 10.0 100
Flex-PE-11 Flex-SPE-11 8.5 11.5 100
Flex-PE-13 Flex-SPE-13 5/16″ 10.0 13.0 100
Flex-PE-14 Flex-SPE-14 11.0 14.0 100
Flex-PE-15 Flex-SPE-15 3/8″ 12.0 15.8 100
Flex-PE-18 Flex-SPE-18 14.3 18.5 100
Flex-PE-20 Flex-SPE-20 16.0 20.0 100
Flex-PE-21 Flex-SPE-21 1/2″ 17.0 21.2 100
Flex-PE-25 Flex-SPE-25 21.0 25.0 100
Flex-PE-28 Flex-SPE-28 3/4″ 23.0 28.5 100
Flex-PE-32 Flex-SPE-32 25.0 32.0 50
Flex-PE-34 Flex-SPE-34 1″ 29.0 34.5 50
Flex-PE-42 Flex-SPE-42 1-1/4″ 36.0 42.5 25
Flex-PE-54 Flex-SPE-54 2″ 48.0 54.5 25
Flex-PE-67 Flex-SPE-67 2-1/2″ 56.3 67.2 25
Flex-PE-80 Flex-SPE-80 3″ 66.5 80.0 20
Flex-PE-106 Flex-SPE-106 4″ 91.0 106.0 20

7. Packages:

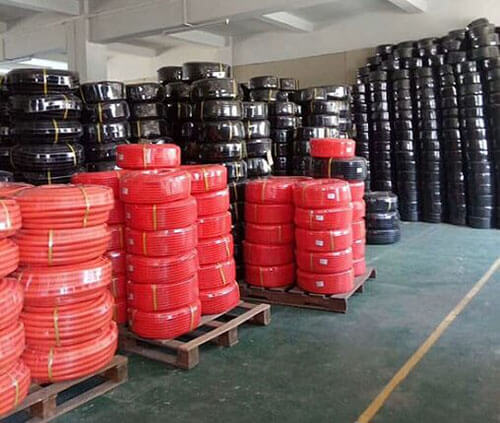

wire loom tubing warehouse

general sizes of wire loom tubing are in stock



Remarks:

MOQ: 100m

Payment Terms: 30% deposit, balance before delivery.

Payments Method: T/T, Western Union, Paypal are available. others are negotiated.

Custom Service: wire loom tubing custom service is workable for us. Such as split, materials, sizes, logo, packing quantity, package, V0, V1, V2 custom etc.
