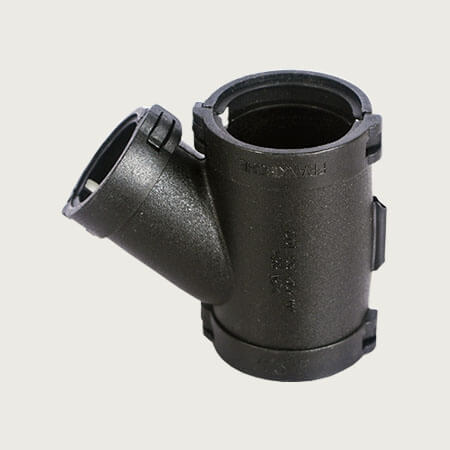

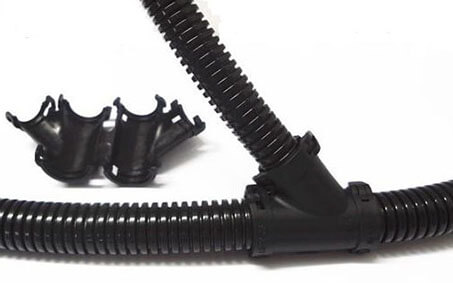

Wire Loom Y Connectors
- PRODUCT DETAIL
Products:
Show:

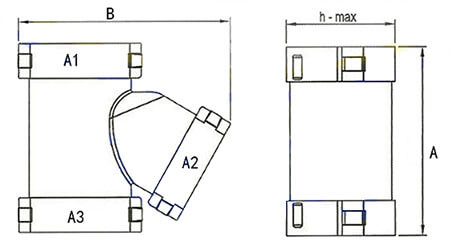

Size Chart:
|
Specification
|
A1(conduit O.D.)
|
A2(conduit O.D.)
|
A3(conduit O.D.)
|
|
WLY-10/7/7
|
10mm(1/4″) | 7mm(1/8″) | 7mm(1/8″) |
|
WLY-10/10/10
|
10mm(1/4″) | 10mm(1/4″) | 10mm(1/4″) |
|
WLY-13/10/13
|
13mm(3/8″) | 10mm(1/4″) | 13mm(3/8″) |
|
WLY-13/13/13
|
13mm(3/8″) | 13mm(3/8″) | 13mm(3/8″) |
|
WLY-16/10/10
|
16mm(1/2″) | 10mm(1/4″) | 10mm(1/4″) |
|
WLY-16/10/13
|
16mm(1/2″)
|
10mm(1/4″) | 13mm(3/8″) |
| WLY-16/13/13 | 16mm(1/2″) | 13mm(3/8″) | 13mm(3/8″) |
| WLY-16/13/16 | 16mm(1/2″) | 13mm(3/8″) | 16mm(1/2″) |
| WLY-16/16/16 | 16mm(1/2″) | 16mm(1/2″) | 16mm(1/2″) |
| WLY-21/13/13 | 21mm(5/8″) | 13mm(3/8″) | 13mm(3/8″) |
| WLY-21/16/16 | 21mm(5/8″) | 16mm(1/2″) | 16mm(1/2″) |
| WLY-21/21/21 | 21mm(5/8″) | 21mm(5/8″) | 21mm(5/8″) |
| WLY-25/10/25 | 25mm(3/4″) | 10mm(1/4″) | 25mm(3/4″) |
| WLY-25/13/25 | 25mm(3/4″) | 13mm(3/8″) | 25mm(3/4″) |
| WLY-25/16/21 | 25mm(3/4″) | 16mm(1/2″) | 21mm(5/8″) |
| WLY-25/16/25 | 25mm(3/4″) | 16mm(1/2″) | 25mm(3/4″) |
| WLY-25/21/21 | 25mm(3/4″) | 21mm(5/8″) | 21mm(5/8″) |
| WLY-25/25/25 | 25mm(3/4″) | 25mm(3/4″) | 25mm(3/4″) |
| WLY-28/16/21 | 28mm(7/8″) | 16mm(1/2″) | 21mm(5/8″) |
| WLY-28/21/21 | 28mm(7/8″) | 21mm(5/8″) | 21mm(5/8″) |
Remarks:
MOQ:
100pcs.
Payments:
T/T, Western Union, Paypal are available. Others are negotiated.
Custom Service:
Wire loom Y connectors custom service is workable for us. Such as sizes, logo, packing quantity, packages etc.
