Product name :  Openable Connector
Material : Polyamide(PA)
 Enlarge Image                   Back



Details:

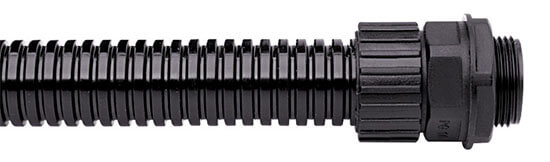

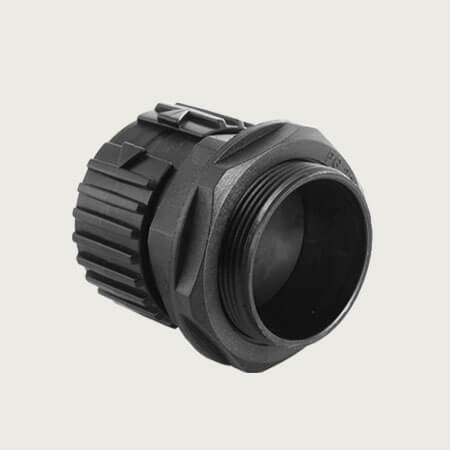

Openable Plastic Flexible Conduit Connector



Products Technical Date:

1. Material: Polyamide(pa), POM

2. Working Temperature: -20℃~ +110℃

3. Threads: PG, Metric, G(PF)

4. Packaging: PE bags, with carton. Packing quantity based on the specification.

5. Usage:

openable plastic flexible conduit connector is used to connect plastic flexible conduit to others
openable plastic flexible conduit connector is used to connect plastic flexible conduit to others

6. Size Chart:

Conduit Outer Diameter Metric Thread PG Thread G(PF) Thread
Part No. Thread Part No. Thread Part No. Thread
10.0mm OCM1012 M12*1.5 OCP1007 PG7
13.0mm OCM1316 M16*1.5 OCP1309 PG9
15.8mm OCM1618 M18*1.5 OCP1611 PG11
18.5mm OCM1820 M20*1.5 OCP1813 PG13.5
21.2mm OCM2120 M20*1.5 OCP2116 PG16
21.2mm OCM2124 M24*1.5
25.0mm OCM2525 M25*1.5 OCPF3/4 G3/4″
28.5mm OCM2827 M27*2.0 OCP2821 PG21
34.5mm OCM3432 M32*1.5 OCP3429 PG29 OCPF1 G1″
34.5mm OCM3436 M36*2.0
42.5mm OCM4248 M48*2.0 OCP4236 PG36
54.5mm OCM5460 M60*2.0 OCP5448 PG48



Remarks:

MOQ: 10pcs.

Payments: T/T, Western Union, Paypal are available. Others are negotiated.

Customizable Service: Openable plastic flexible conduit connector customizable is workable for us. Such as sizes, logo, packing quantity, packages etc.
