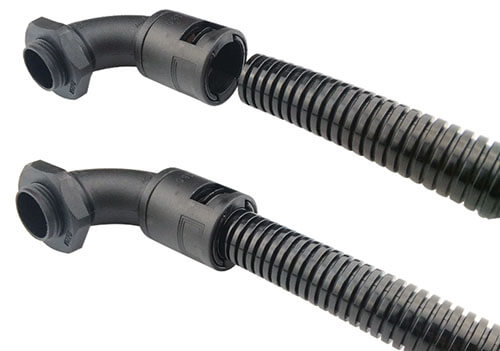

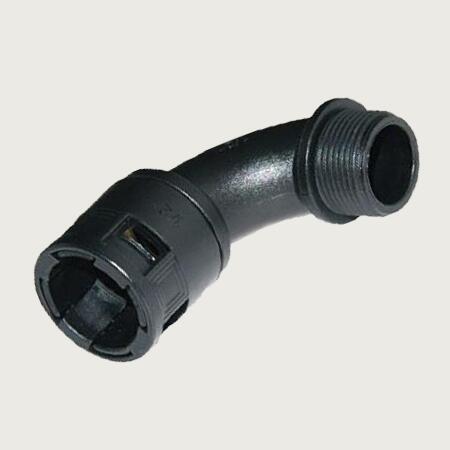

Advanced Elbow Connector
- PRODUCT DETAIL
Products introduction:
1. Material: Polyamide(pa)
2. Threads: PG and Metric
3. Colors: Black(general), others could be customizable
4. Working Temperature: -20℃~+110℃
5. Fire-proof: Only for customizable
6. Protection Standard: IP66
7. Packaging: Exported cartons with PE bags. Packing quantity based on the specification.
8.Size:
| Conduit Outer Diameter | PG Type | Metric Type | ||
| Types | PG Thread | Types | M Thread | |
| 10mm(1/4″) | Flex-10W | PG7 | Flex-10WM | M10*1.5 |
| 13mm(3/8″) | Flex-13W | PG9 | Flex-13WM | M12*1.5 |
| 15.8mm(1/2″) | Flex-15W | PG11 | Flex-15WM | M16*1.5 |
| 18.5mm | Flex-18W | PG13.5 | Flex-18WM | M20*1.5 |
| 21.2mm(5/8″) | Flex-21W | PG16 | Flex-21WM | M20*1.5 |
| 25mm(3/4″) | Flex-25W | PG21 | Flex-25WM | M25*1.5 |
| 28.5mm(7/8″) | Flex-28W | PG21 | Flex-28WM | M25*1.5 |
| 32.0mm | Flex-32W | PG29 | Flex-32WM | M32*1.5 |
| 34.5mm(1″) | Flex-34W | PG29 | Flex-34WM | M32*1.5 |
| 42.5mm(1-1/2″) | Flex-42W | PG36 | Flex-42WM | M40*1.5 |
| 54.5mm(2″) | Flex-54W | PG48 | Flex-54WM | M50*1.5 |
| Fire-proof: V0, V1, V2, HB. Only for customizable. | ||||
Remarks:
MOQ: 10pcs.
Payments: T/T, Western Union, Paypal are available. Others are negotiated.
Customizable Service: Advanced elbow connector customizable is workable for us. Such as fire-proof, sizes, logo, packing quantity, packages etc.
