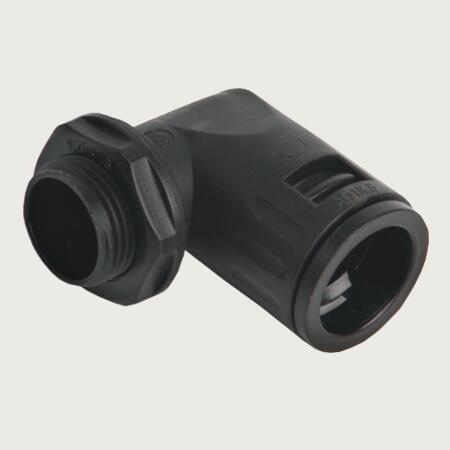

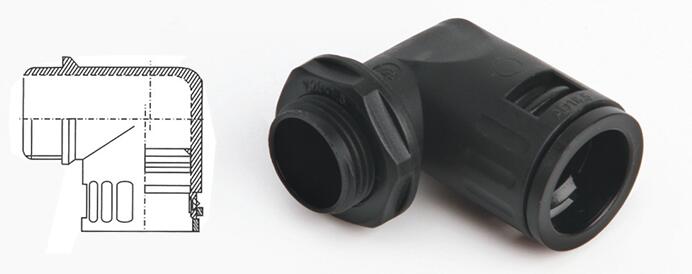

Quick Conduit Elbow
- PRODUCT DETAIL
Products introduction:
1. Material:
Polyamide(PA)
2. Threads:
PG, Metric, G(PF)
3. Working Temperature:
-20℃~+110℃
4. How to Use:
One side connect the hose, the other side contact the machine.
5. Packaging:
PE bags, with carton. Packing quantity based on the specification
6.Size:
| Match Conduit Outer Diameter | Metric Type | PG Type | G(PF) Type | |||
| Part No. | M Thread | Part No. | PG Thread | Part No. | G Thread | |
|
10.0mm(1/4″)
|
Flex-1012WM | M12*1.5 | Flex-1007WG | PG7 | Flex-10WG | G1/4″ |
|
13.0mm(3/8″)
|
Flex-1316WM | M16*1.5 | Flex-1309WG | PG9 | Flex-13WG | G3/8″ |
|
15.8mm(1/2″)
|
Flex-1516WM | M16*1.5 | Flex-1511WG | PG11 | Flex-15WG | G1/2″ |
| Flex-1518WM | M18*1.5 | |||||
| Flex-1520WM | M20*1.5 | |||||
|
18.5mm
|
Flex-1820WM | M20*1.5 | Flex-1813WG | PG13.5 | Flex-18WG | G1/2″ |
|
21.2mm(5/8″)
|
Flex-2120WM | M20*1.5 | Flex-2116WG | PG16 | Flex-21WG | G1/2″ |
| Flex-2124WM | M24*1.5 | |||||
| Flex-2125WM | M25*1.5 | |||||
|
25.0mm(3/4″)
|
Flex-2525WM | M25*1.5 | Flex-2521WG | PG21 | Flex-25WG | G3/4″ |
|
28.5mm(7/8″)
|
Flex-2825WM | M25*1.5 | Flex-2821WG | PG21 | Flex-28WG | G3/4″ |
| Flex-2827WM | M27*1.5 | |||||
| Flex-2830WM | M30*1.5 | |||||
|
34.5mm(1″)
|
Flex-3432WM | M32*1.5 | Flex-3429WG | PG29 | Flex-34WG | G1″ |
| Flex-3436WM | M36*1.5 | |||||
| Flex-3440WM | M40*1.5 | |||||
|
42.5mm(1-1/2″)
|
Flex-4240WM | M40*1.5 | Flex-4236WG | PG36 | Flex-42WG | G1-1/4″ |
|
54.5mm(2″)
|
Flex-5450WM | M50*1.5 | Flex-5442WG | PG42 | Flex-54WG | G1-1/2″ |
| Flex-5463WM | M63*1.5 | Flex-5448WG | PG48 | Flex-55WG | G2″ | |
Remarks:
MOQ:
100pcs.
Payments:
T/T, Western Union, Paypal are available. Others are negotiated.
Customizable Service:
quick conduit elbow customizable are workable for us. Such as sizes, logo, packing quantity, packages etc.
